FEATURES

• Transforms your vehicle into a mobile workstation with highly adjustable RAM® components and enabled by GDS® Tech™ peripherals

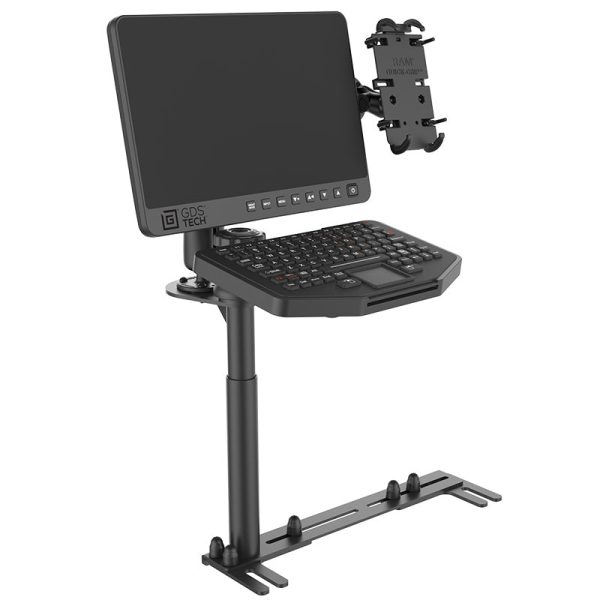

• Includes RAM® No-Drill™ Universal Vehicle Base and tele-pole swing arm system, GDS® View™ 13.3 touch screen monitor, GDS® Keyboard™, RAM® Quick-Grip™ Phone Mount, display bracket, GDS® Tough-Hub™, CLA charger, and USB Type-C Cables
• Compatible with Samsung DeX

• OVERVIEW

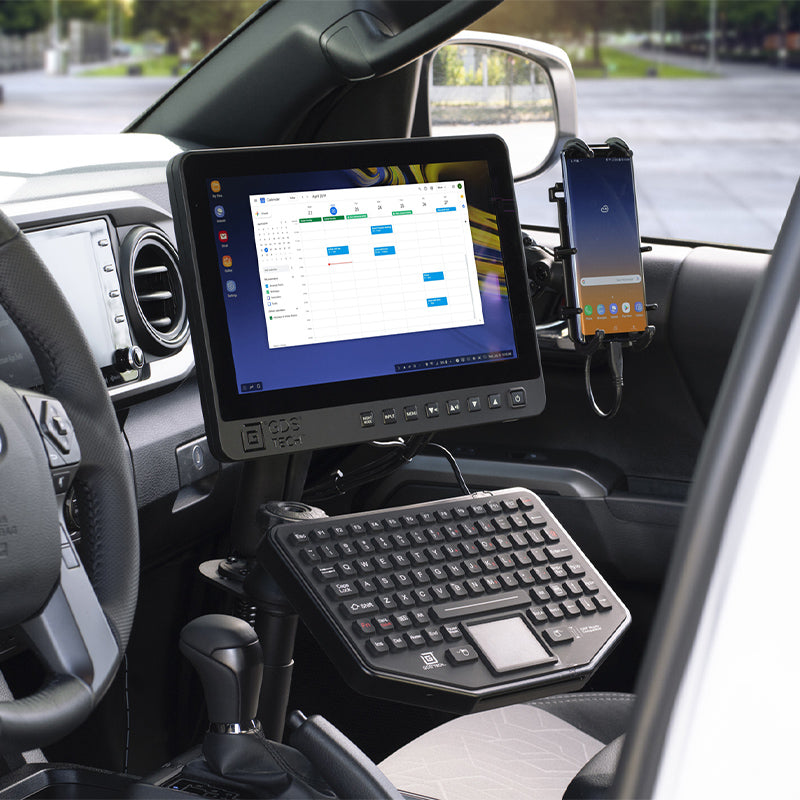

  All the benefits of the GDS^{® Ecosystem™ in one mounting system to create your very own mobile workstation. Centralized around the GDS® View™ 13.3 touch screen monitor, the GDS® Ecosystem™ Vehicle Bundle is mounted on the universal RAM® No-Drill™ vehicle base and tele-pole swing arm system, accompanied by the GDS® Keyboard™ with trackpad, display bracket, RAM® Quick-Grip™ XL phone mount, the GDS® Tough-Hub™, charging accessories and USB Type-C extension cable. This all-in-one mobile workstation is highly adjustable and supports add-on peripherals for a more customized workstation. Take advantage of this vehicle mount bundle to enable Samsung DeX In-Vehicle by placing your DeX compatible phone into the RAM® Quick-Grip™ XL and plugging your DeX Cable directly into the GDS® View™ Monitor.}

  HARDWARE INCLUDED

  Assembly Hardware
  (1) HDMI Cable
  (1) VGA Cable
  (1) USB Type-B to USB Type-A Cable
  Hardwire & CLA chargers for monitor
  USB Type-C cable & CLA charger for hub & phone



  HOLDER DIMENSIONS

  For Phone Holder:
  Height Range: 5.75 – 8.25
  Width Range: 2.625 – 3.625
  Max Depth: .72



  MONITOR SPECIFICATIONS

  Screen Size: 13.3
  Anti-glare and Anti-fingerprint treatment applied on LCD
  Max Resolution: 1920 x 1080 high resolution
  Aspect ratio: 16:9
  Tough Panel: 2-point capacitive touch
  Audio: (2) 2W Speakers
  Brightness: 800nits
  Contrast ratio: 1000:1
  Red monochrome night mode to reduce eye strain for night viewing
  Control buttons on front of monitor for easy access
  Zip tie attachment loops for cable management



  MATERIALS

  Powder coated steel
  Marine grade-aluminum
  High strength composite



  PACKAGING TYPE

  Box



  INPUT RANGE

  Monitor: 10-30V DC
  CLA Charger for Hub: 12-24V DC



  POWER OUTPUT

  63W Total (45W for Type-C & 18W for Type-A)



  OUTPUT CURRENT

  6A max



  OPERATING TEMPERATURE

  -10°C to +50°C



  STORAGE TEMPERATURE

  0°C to +45°C



  PORTS

  CLA Charger:
  (1) Type-C Female (PD) (1) Type-A Female (QC 3.0)

  GDS® Tough-Hub™:
  (4) USB Type A Ports – One supports BC 1.2 with power up to 7.5W (5V 1.5A)
  (1) RJ45 Port – Supports 10 100 1000Mbps bandwidth
  (1) HDMI Port – Resolution up to 4Kx2K@30Hz
  (1) USB Type-C Port – Supports data and PD charging 100W (20V 5A))

  GDS® View™ Monitor:
  (1) Power Input
  (1) HDMI
  (1) VGA
  (1) 3.5mm Audio Output
  (1) USB Type-B (Host Input)
  (3) USB Type-A (Peripheral Outputs)



  COMPLIANCE

  Meets SAE J-1113
  Integrated Short Circuit Protection (SCP)



  CERTIFICATIONS

  MIL-STD-810G 514.5 Vibration Tested
  FCC, CE, IC, RCM, WEEE, e-Mark, ISO 7637-2, and RoHS



  WEIGHT

  27.0 lbs.



  ADDITIONAL INFORMATION:

  Depending on your vehicle, some installations may limit the adjustability of the passenger seat.

  THIS PRODUCT SHIPS TO THE UPPER 48 UNITED STATES ONLY (NO INTERNATIONAL SHIPPING)
