FEATURES

• Rail and bar base for UTVs and ATVs includes strap clamp and U-bolt components
• Included C size 1.5 RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

• OVERVIEW

  Designed for a clean installation, RAM-231Z-2U base accommodates most common tubing sizes on UTV’s and ATV s, allowing for the placement of the RAM rubber ball base. Safely concealing a strap clamp in a compact housing, you won’t have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc coated metal u-bolt, this allowing you to modify the mount to accommodate mounting location. The base also includes black cover caps to be placed over the exposed ends of the u-bolt.

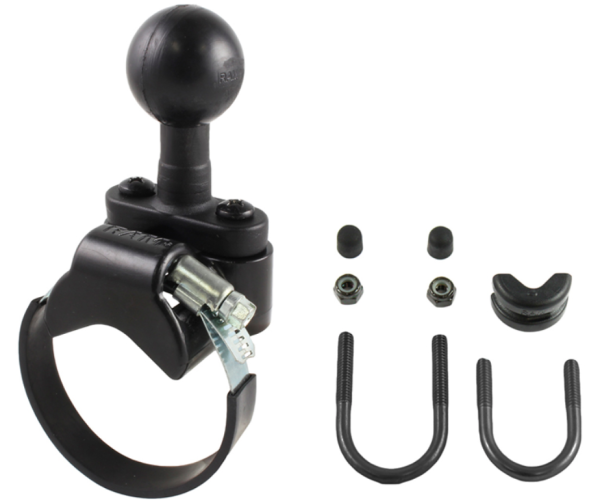

  HARDWARE INCLUDED

  (1) Strap Clamp Adapter
  (2) 1 4 -20 x 1 Machine Screws
  (2) 1 4 -20 Nylock Nuts
  (1) Zinc Worm Drive Strap Clamp
  (1) 6 Rubber Strip
  (1) 1 4 -20 U-Bolt for .5 – 1 Rails
  (1) 1 4 -20 U-Bolt for 1 – 1.25 Rails
  (2) Rubber Caps
  (1) U-Bolt Spacer



  CLAMP RANGE

  U-Bolt: .5 – 1.25 diameter
  Strap Clamp: 1.57 – 3.15 diameter



  BALL SOCKET SIZE

  C Size (1.5 )



  WEIGHT CAPACITY

  4 lbs



  MATERIALS

  Marine-grade aluminum



  PACKAGING TYPE

  Poly Bag



  WEIGHT

  0.45 lbs.
